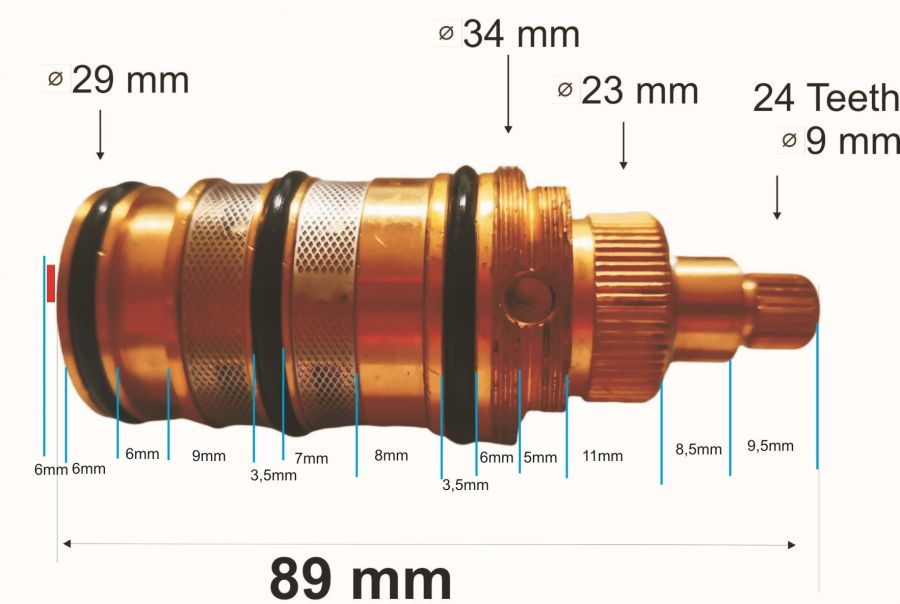

Thermostatic Replacement Cartridge for Valve Shower

* To adjust the water temperature.

MATERIAL: Brass

INSTALLATION: Screw in

Number of teeth on handle sindle: 24 Teeth ( diamete: 9 mm )

Total Length (excluding wax elenent protruting from the bottom): 89 mm

Diameter 34 mm

Number of O Rings: 3

Technical information on the thermostatic core:

Allowable range of supply water temperatures: from 5 ° C to 80 ° C.

Maximum supply water pressure: 1 MPa (7 atm).

Recommended feed pressure: 0.05 to 0.5 MPa (0.5 - 5.0 atm).

Water temperature adjustment range: from 15 ° C to 60 ° C.

Calibration of the thermostatic head made for a pressure of 0.3 MPa (3 atm).

Dimensions: 91mm (height) x 34mm (width at the widest point)

* Color or finish may vary
